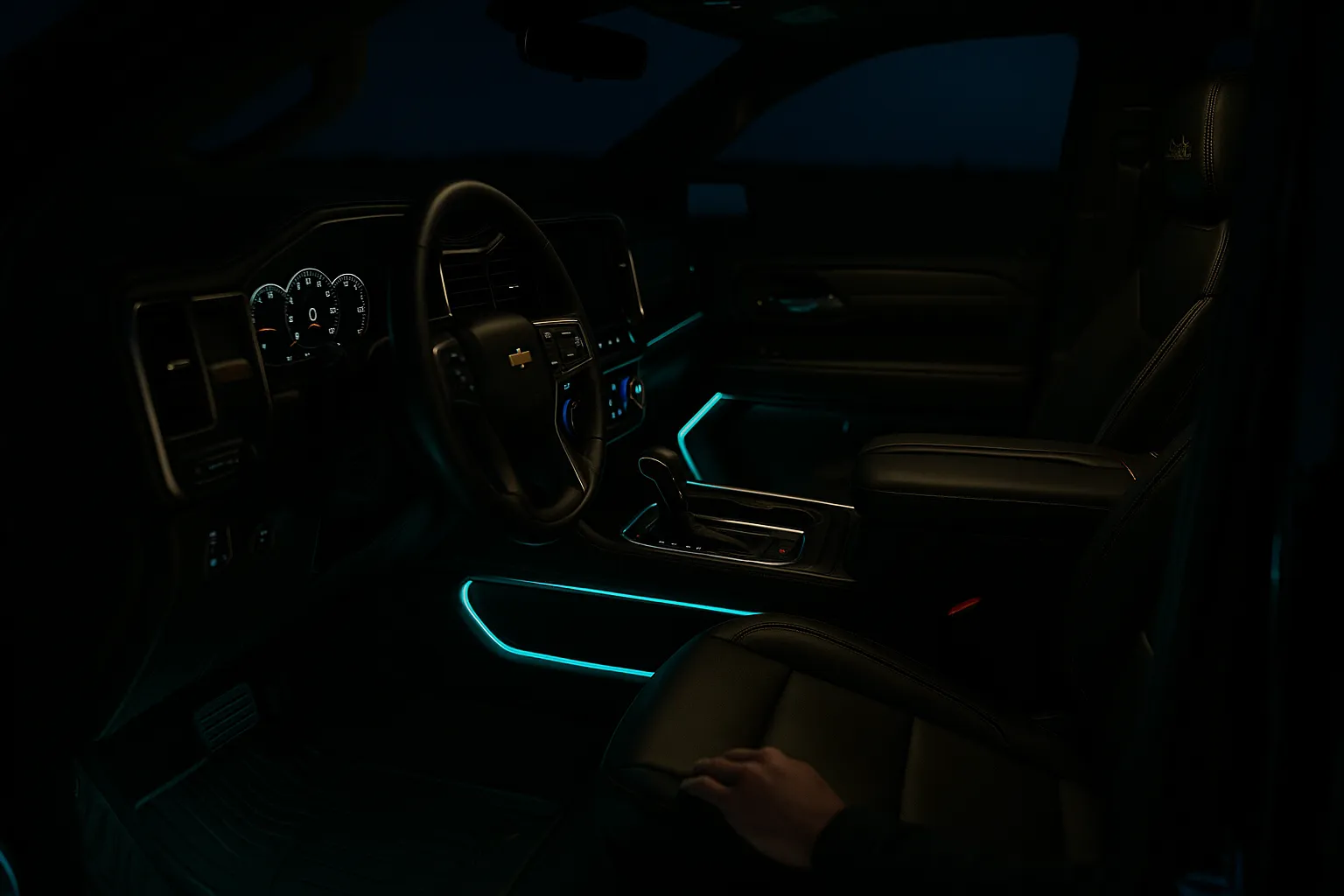

Interior LED accent lighting is the install we do most often, and the one that most defines whether a custom-lighting build feels factory or aftermarket. Done well, you sit down in the cabin, the lights come up gradually with your door, and your vehicle feels like it shipped that way from a higher trim level. Done badly, you see purple under the dashboard and a strip dangling out from behind the kick panel.
What we install
A typical interior install lights 3–6 zones:
- Footwells (front pair, optional rear pair on extended-cab and SUV builds)
- Dashboard top-edge accent — the strip we install in the windshield-meets-dashboard channel, washing the dash from above
- Door-card accent — running along the inside of the door panel, catching the seat back and the footwell
- Center-console — under the cup-holder lip or along the shifter surround
- Headliner perimeter — pairs nicely with a galaxy-headliner install, otherwise stands alone as a ceiling wash
Each zone is independently addressable from the controller. You can run the dashboard cyan and the footwells warm-white, or sync them all to one color, or program a pattern that cascades from front-to-rear when you start the car.
Strip-quality matters here
For interior installs we use 5050 RGB+W chips on flexible silicone. The W channel matters more here than on underbody installs because interior light reads against fabric and leather, both of which take on color casts that can read wrong. A dedicated white channel lets us tune the ambient feel without going into pink-cast or blue-cast territory.
The strip is fabric-channel-mounted, not adhesive. Adhesive interior strips will fail in 12–18 months as cabin temperature swings cycle the glue. Channel-mounted strips don’t have that failure mode.
Trigger behavior
Most owners want some version of this:
- Door opens → footwell + door-card lights ramp up over 0.5s.
- Key in ACC → dashboard accent comes on at low brightness.
- Engine starts → all zones come up to your saved daily-driver preset.
- Key out, door closes → all zones fade to dark over 1.5s.
We can program any of those triggers to fire any pattern on any zone. The defaults above are what most owners settle on after a week of driving with the system.
What it costs
Starting at $150 for a 2-zone footwell install on a compact cabin. Full 4-zone install runs $300–$450, full 6-zone runs $500–$700. RGB+W upgrade adds $60 per zone. Combo with galaxy headliner gets a bundle discount.
Our Process
-
Consultation
We sit in your vehicle, identify the trim seams and channels we can route through cleanly, and discuss which zones (footwells, dash, door cards, console, headliner perimeter) you want lit.
-
Spec
Per-zone strip selection, color-change pattern (static / breathing / chase / app-driven), and any door-trigger or ignition-trigger logic. You approve the zone map before install.
-
Install
Trim panels lift cleanly. Strips route behind kick panels, along door-card seams, under dashboard ledges. Wiring tucks into existing harness paths. Controller mounts behind a switchable trim panel.
-
Walk-through
Cabin-light demo at dusk. We tune brightness against your vehicle's interior fabric / leather color so the wash reads as ambient, not theatrical. App pairing + your saved presets.
Frequently Asked Questions
-
Will this affect my factory door-light or interior-trigger wiring?
No. We tap into ignition-switched 12V (so the lights don't drain the battery) and add a separate fused circuit. Factory door-courtesy lights, trunk lights, dome lights, and switched-with-ignition accessories all behave exactly as they did from the factory. The new circuit is isolated.
-
Can the lights respond to door open / close or starting the car?
Yes. The controller supports trigger inputs from the door-pin switch (lights ramp up when door opens, fade out when door closes) and from accessory power (lights come on when key is in ACC, full bright when running). Both triggers are programmable per-zone — your doors might use one pattern, your dashboard another.
-
How visible are the strips from inside the vehicle?
If we did our job right, the strip itself is hidden from passenger view — only the wash of light is visible. We route along trim seams, behind ledges, and under panel edges. The light appears, the strip doesn't. If you can see the strip from a normal seated position, the install isn't done.
-
What about installs on lease vehicles or daily drivers I want fully reversible?
Most of the install is reversible: trim panels lift and reseat without trace, wiring uses non-permanent quick-disconnect taps where possible. We can install for lease-return reversibility as a specific spec — slightly different routing, more removable connectors. Let us know at consultation if reversibility is a hard requirement.
Ready to spec your install?
Free 15-minute consultation. We'll walk you through options, kit choices, and timeline.
