Underbody lighting is the most-misunderstood install we do. Done badly, it looks like a parking-lot import-scene cliché from 2003. Done with proper strip choice, mount geometry, and wire-run discipline, it reads as a clean line of light tucked under the body — closer to a vehicle’s own running light than to aftermarket showboating.
What “done well” looks like
We install silicone-jacketed RGB strips, not adhesive-backed flexible PCB. The difference is a structural one:
- Silicone jacketing is impact-resistant and abrasion-resistant. Road debris doesn’t peel them off the chassis.
- The PCB and LEDs sit inside the silicone, fully sealed against water, salt, and dust. IP68-rated against full immersion.
- The strips terminate in factory-style automotive connectors, not bare wire ends. Service-friendly.
For builds where true white matters (color-pop photography, etc.) we upgrade to RGB+W strips with a dedicated white channel. Standard RGB mixes white from R+G+B, which has a slightly cool cast; the W channel delivers a clean 4000K-or-3000K white instead.
Where the strips go
Three common layouts:

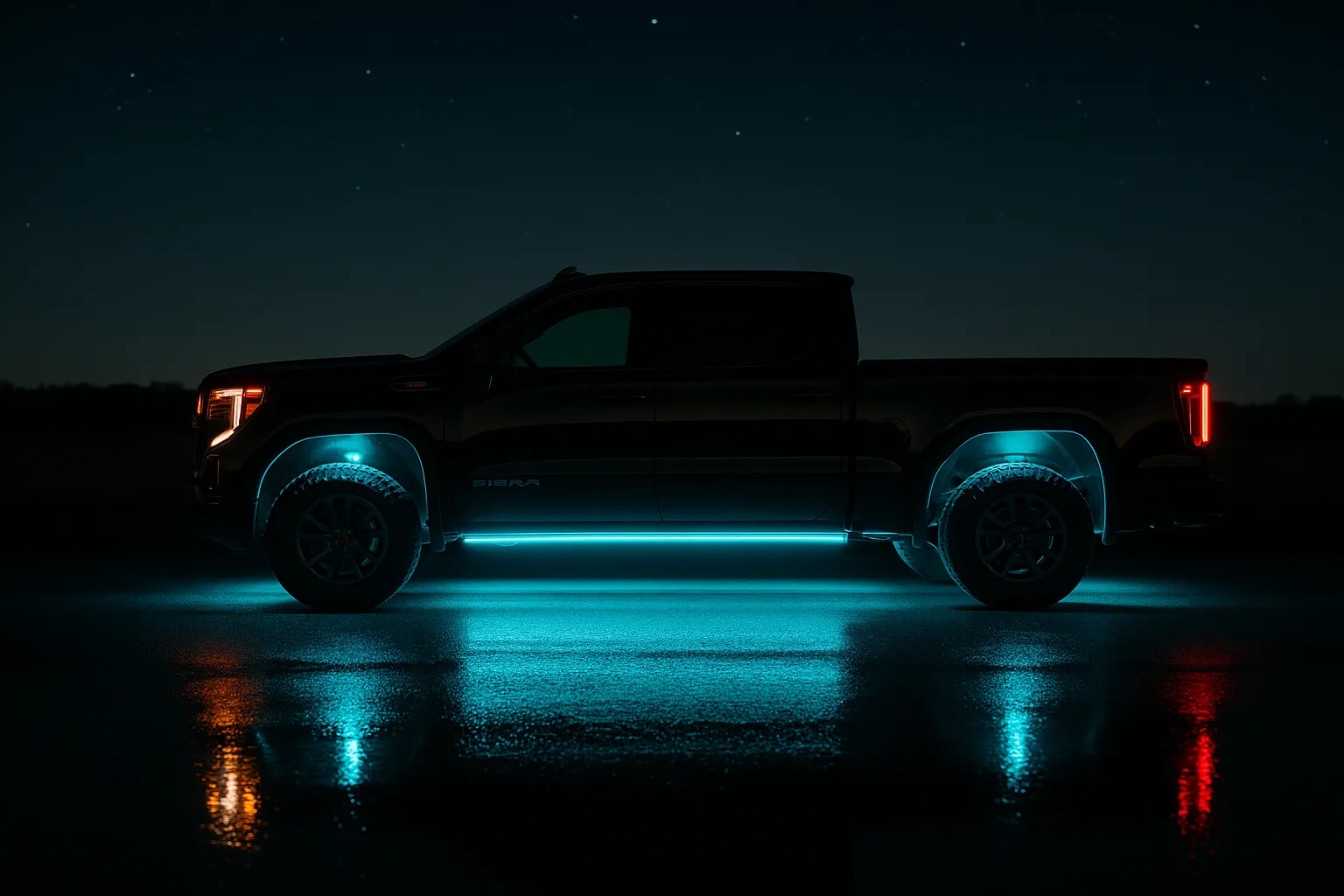

- Continuous perimeter — the most popular. Strip hugs the inside of the rocker, around the front bumper splitter, across the rear valence. Reads as a solid wash.
- Four-corner accent — strips at each wheel well only, tied together via the controller. Sportier, less full-coverage.
- Single-side wash — show-only build that pairs with a specific side-display angle. Less common but available.
We talk through which fits your use case at consultation.
Cab-side control
The controller installs above the dash or in the center console. It ships with:
- A physical toggle for fast on/off without unlocking your phone
- A Bluetooth pair for app-driven color and pattern selection
- A drive-mode interlock that kills lighting above 5 mph and enforces the on-road-legal color palette
- Pattern memory for 5 saved configurations
What it costs
Starting at $300 for a four-corner accent kit on a compact pickup. Continuous-perimeter installs run $450–$700 depending on vehicle length, strip count, and controller features. RGB+W upgrade adds $80–$120. Combo install with rock-lights gets a bundle discount — ask at consultation.
Our Process
-
Consultation
We measure the underbody, walk the strip-route options (continuous perimeter / four-corner accent / single-side wash), and confirm the color-change pattern you want.
-
Spec + route
Strip type (heavy-duty silicone-jacketed RGB, or RGB+W for true white), wire run plan, controller location, switch type. Approved before any work begins.
-
Install
Strips mount to clean chassis surfaces with brackets and high-bond automotive adhesive. Wiring routes through frame channels and sealed pass-throughs. Cab-side controller with hard switch + app pairing.
-
Walk-through
After-dark walk-around. We tune brightness for ambient conditions, set your daily-driver default, and walk you through pattern programming via the app.
Frequently Asked Questions
-
How does this hold up to weather, salt, and pressure-washing?
The strips we install are silicone-jacketed (not just IP-rated PCB) — the same construction used in marine and off-road heavy-equipment lighting. Salt, slush, mud, and a pressure-washer at 1500 PSI from 18 inches are all within service spec. We warranty for two years; we have customers running these through five Champaign winters with no failures.
-
Is underbody lighting legal in Illinois?
Decorative under-body lighting is legal in Illinois at standstill (driveway, show, parking lot). On public roads, the lights must be off while the vehicle is in motion, and red/blue colors are restricted (because they can be confused with emergency vehicles). Our controller defaults to off above 5 mph and excludes red/blue from the on-road palette automatically.
-
Will it interfere with anything underneath?
No. The strips mount to flat chassis surfaces — frame rails, skid plate edges, control-arm tabs — never to anything that moves or rotates. Mount points are chosen for clearance from exhaust heat, suspension articulation, and brake-line routing. We don't compromise drive-train clearances.
-
Can I run the same color as my rock lights?
Yes. The underbody controller can be slaved to a rock-light controller (or a separate one synchronized via app), so any pattern or color you set on one fires across both. We do this on combo installs all the time — single-app control, both lighting zones, one show mode.
Ready to spec your install?
Free 15-minute consultation. We'll walk you through options, kit choices, and timeline.
